The Prisoner Mounted Print - Lotus Seven No 6

Product Description

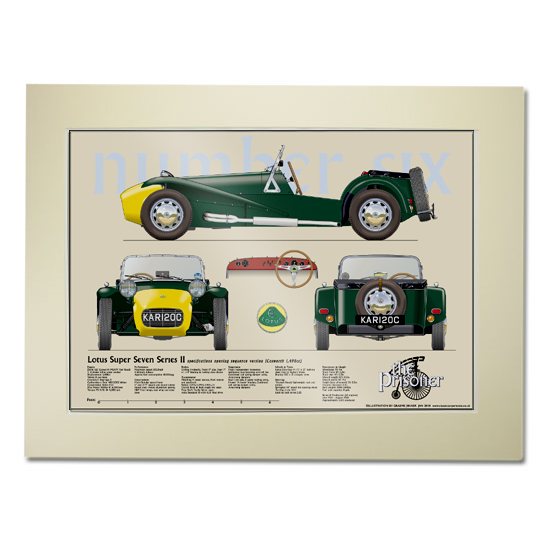

A scale drawing of the Lotus Super Seven Series 2 featured in the cult TV series The Prisoner, mounted and boarded.

This mounted Prisoner print is one of a series of two scale model drawings based on the cult 1960's TV programme.

The Prisoner Print

• Width: 40cm (16") Approx
• Height: 28cm (11") Approx

Mounted Dimensions

• Width: 50cm (20") Approx
• Height: 38cm (15") Approx

Lotus Seven Series II Cosworth 1965 specifications

Engine

• (Ford 116E Cosworth MkXIV Fast Road)
• 4 Cylinder inline water cooled
• Displacement: 1,498cc
• Valves: 8 overhead
• Crankshaft Bearings: 5
• Carburettors: Twin 40DCOE2 Weber
• Compression Ratio: 9.5:1
• Max Power: 95bhp @ 6,000rpm
• Torque: 95 ft/lb @ 4,500rpm

Performance

• Maximum speed: 102.2mph
• 0-60mph: 6.8secs
• Approx fuel consumption: 18-20mpg

Construction

• Multi-Tubular space-frame
• (1" and 3/4" square and round tubes) monel steel riveted aluminium panels,
• GRP front wings, rear wing and nose cone

Brakes

• Girling Hydraulic. Front: 9" disc. Rear: 7" x 1 1/4" leading & trailing shoe drums

Transmission

• Matching 4 speed manual, Ford remote and gear knob
• Ratios: 3.54:1, 2.397:1, 1.412:1, 1:1
• Clutch: Borg & Beck single dry plate
• Prop Shaft: Hardy Spicer open
• Axle: Standard 10 with 4.11:1 final drive

Suspension

• Front: Independent transverse wishbones incorporating anti-roll bar. Combined coil spring damper units, Armstrong dampers
• Rear: Live axle, 2 upper trailing arms, 1 lower 'A-frame' bracket, Combined coil spring damper units,
  Armstrong dampers

Wheels & Tyres

• Lotus Elan-type 4 1/2" x 13" bolt-on steel rims by Rubery Owen
• Dunlop 520 x 13 crossply tyres

Steering

• Triumph Herald lightweight rack and pinion
• Springhall 14" wood rim steering wheel
• Turning circle: 24ft
• Lock to lock turns: 2.25

Dimensions & Weight

• Wheelbase: 7ft 4in
• Track front: 3ft 11.5in
• Track rear: 4ft 0.5in
• Overall length: 10ft 11.5in
• Overall width: 4ft 7in
• Height (top of screen): 3ft 3.5in
• Ground clearance: 6 in.
• Kerb weight: 1008-1064lbs
• Fuel tank capacity: 8 gals

Series II Production (all engines)

• June 1960 - August 1968
• Approximately 1,310 produced
